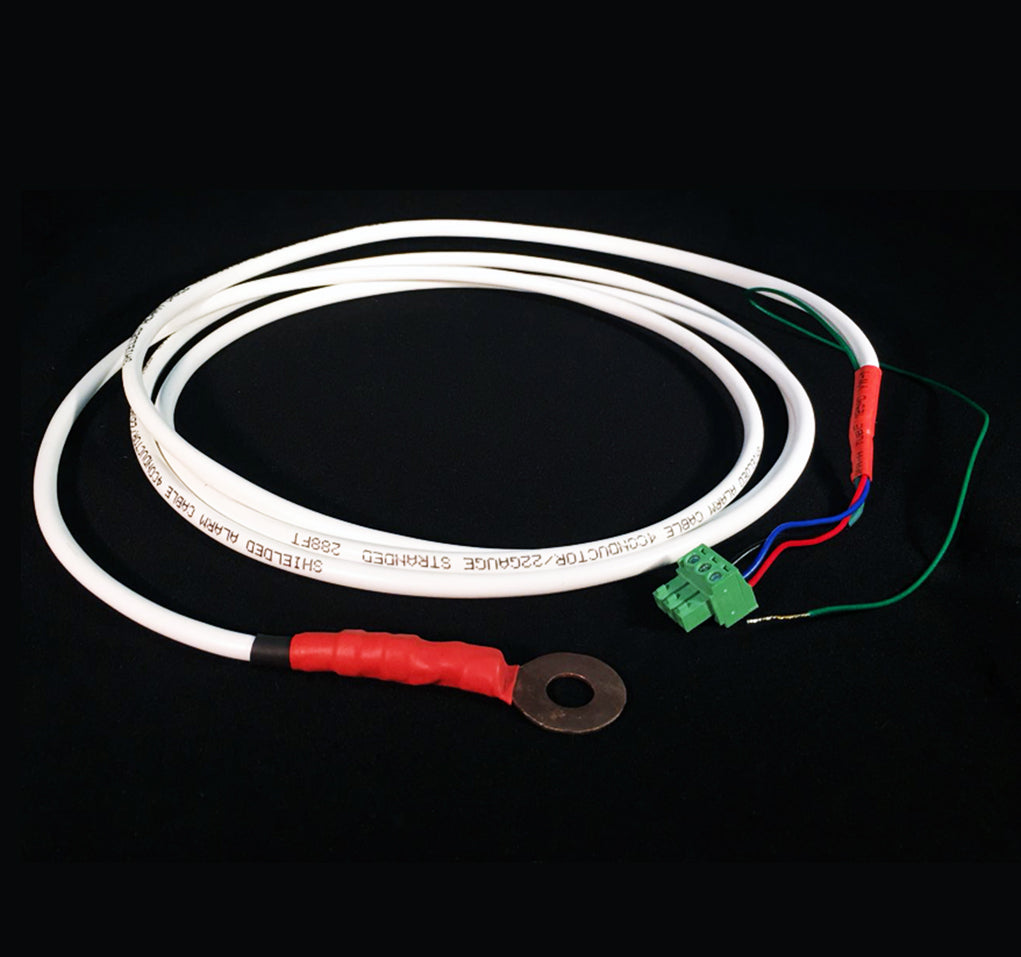

Bolt-On Pump Temperature Sensor (DTB360, R1/R2 replacement) — image 1

Specifications

Details

Bolt-on pump-head temperature sensor — DTB360 R1/R2 replacement

Direct replacement for the pump-head temperature sensor supplied with R1 and R2 Compressor Controller kits. Bolts to the cylinder head, plugs into the controller's temperature input, no recalibration needed.

Why order this

  • Direct-replacement spare for the temperature sensor that ships with the Compressor Controller R1 / R2 kits.
  • Bolt-on mounting — stainless tab seats on the cylinder head; no thermal-paste fiddling.
  • Plug-and-play with the SAM controller's temperature input — no recalibration, no DIP-switch changes.
  • Compatible coverage range: −40 to +125 °C, matching the controller spec.

Specifications

  • Sensor type: bolt-on pump-head temperature probe
  • Temperature range: −40 to +125 °C
  • Mounting: stainless tab, cylinder-head bolt-on
  • Compatibility: SAM Compressor Controller R1, R2, and Model R kits (Single Pump and Dual Pump)
  • Cable: harness with controller-side connector (matches factory pinout)
  • Origin: Designed and assembled in Pittsboro, NC

FAQ

Will it work with my Model R / Single Pump or Dual Pump kit?

Yes. The DTB360 is the same temperature sensor used across the R1, R2, and current Model R kit lineup, so it drops in identically.

Do I need to recalibrate the controller?

No — the sensor matches the controller's expected sensor characteristics out of the box. Plug it in and resume operation.

Do I need this if my kit is brand new?

No — this is a service / spare item. Order if your existing pump-head sensor has failed or you need a redundant spare.

Compliance & origin

  • Origin: Assembled in Pittsboro, North Carolina, USA. Components are sourced from global suppliers; final assembly, firmware, and QC happen in the NC workshop.
  • Support: ticket-based support direct from the people who built the hardware — open a ticket.
  • Warranty & certifications: available on request — open a ticket for the current scope.

Documentation & warranty

Full technical datasheet, installation guide, and warranty terms are available on request. Ticket-based support direct from the manufacturer in NC.
