The $7 Terminator Gamble: What Cheap Bus Termination Really Costs
A terminator is the cheapest component on an industrial network. That is exactly why teams buy the $7 five-pack and move on. Then a brand-new line throws bus errors on commissioning day. Four hours later somebody unplugs a no-name terminator, measures it, and finds an open circuit. A fractured solder joint inside an unmarked shell stopped a production start.
Stories like that repeat across integrator forums, and the engineering behind them is simple to verify. This article walks the four ways cheap terminators fail, with the math to check each one.
Failure 1: the value is wrong before it ships
Commodity plugs commonly carry 5% carbon-film resistors. A 5% part labeled 120 Ω legally ships anywhere from 114 to 126 Ω, and teardowns report wider spreads in mixed lots. Carbon film also drifts with temperature more than metal film. A plug that measures 120 Ω on a spring bench day can sit at 130+ Ω inside a summer control cabinet.
Every reflection percentage in that drift range is small alone. Combined with a marginal cable, a long run, and a hot afternoon, the drift becomes the difference between a quiet bus and an intermittent one. Networks fail at the margins, and tolerance is margin. Our terminators use 1% resistors as the base, with 0.5% available on every circuit.
Failure 2: the 24 V accident
Industrial cabinets mix communication pairs and 24 V DC power in the same duct. A pinched wire or a mislanded terminal puts 24 V across the termination resistor. The resistor then dissipates real power. Try your own fault voltage:
A 24 V fault across 120 Ω forces 4.8 W through the resistor. A 1/8 W part is overloaded almost 40 times and opens fast, sometimes with smoke and charred potting. A 1/4 W part fails slower and still fails. No small resistor survives that fault forever. The difference an engineered part offers is honest rating, flame-retardant construction, and predictable failure. An unmarked hobby-grade part gives you none of the three, and you learn its rating from the burn mark.
Failure 3: the mechanical shortcuts
Open a $1.50 terminator and the savings are visible. Hand-soldered joints without flux. No strain relief between pins and resistor body. An empty shell with the resistor floating in air, free to fatigue with every vibration cycle. Nothing holds the joint when a panel door slams for the thousandth time.
Potting is the fix, and it is exactly the step commodity plugs skip. Resin filling the shell holds the resistor and its joints rigid, blocks moisture, and spreads vibration load. It is also a manufacturing cost, which is why the $7 pack does not have it. Our plugs pot in soft silicone, hard silicone, or epoxy, chosen by where the plug will live.
Failure 4: nobody knows which pins
Serial RJ45 pinouts differ by vendor. Schneider equipment expects the resistor on pins 4 and 5. Allen-Bradley, CANopen, DMX, and most BACnet controllers expect pins 1 and 2. Commodity listings often do not say which pins carry the resistor, and the shells carry no markings. A terminator on the wrong pins does nothing, quietly, forever.

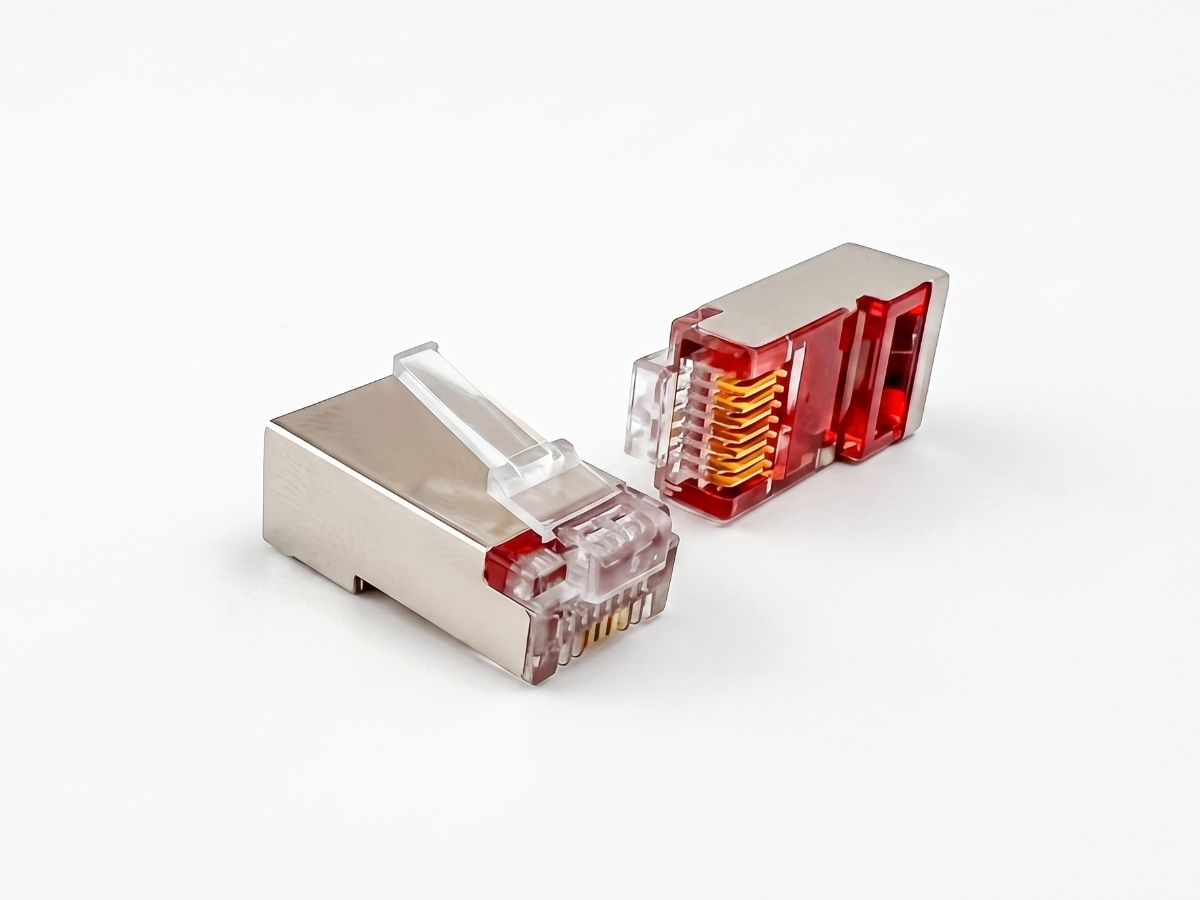

Every SAM terminator states its terminated pins in the configuration name. You order the map your equipment uses, and you can verify it with a meter on arrival, because we publish which pins to probe.
What the gamble actually costs
| Commodity plug | SAM engineered terminator | |
|---|---|---|
| Resistor | 5% carbon film, unspecified wattage | 1% or 0.5%, 1/4 W |
| Pinout | Often unstated | Stated in the configuration name |
| Construction | Empty shell, no strain relief | Potted: soft silicone, hard silicone, or epoxy |
| Testing | Batch sampling at best | 100% of units measured before shipment |
| Shielding option | Rare | Shielded or unshielded, every circuit |
| Price | $1.50–$7 each | from $20 for a pair |
Weigh the price gap against one truck roll. A technician dispatched to chase an intermittent bus costs more than every terminator in the building. The plug is not where the money is. The downtime is.
For harsh cabinets, the top of our range is still small money: shielded, 120 Ω at 0.5%, epoxy-potted — pair, $33. For everything else, pick your configuration or request a custom build. And when a bus still misbehaves after the termination checks out, our CAN Bus Wire Tester finds the bad wires, connectors, and shorts.
Quick answers
Are cheap CAN bus terminators any good?
Some work. The problem is that you cannot tell which ones without measuring each unit. Unstated tolerance, unstated wattage, and unstated pinout mean the QC job moves from the factory to you.
What tolerance should a termination resistor have?
1% metal film is the industrial baseline. 0.5% adds margin for precision and EMC-critical work. 5% carbon film leaves too much drift across cabinet temperatures.
What wattage should a bus terminator be?
1/4 W is the working baseline for industrial RS-485 and CAN termination. Normal signaling dissipates only milliwatts. The rating exists for fault conditions, not for normal operation.
Why does potting matter in a terminator?
The resin locks the resistor and solder joints against vibration and keeps moisture out. Un-potted shells leave the joint hanging on two wire stubs for the life of the plant.
