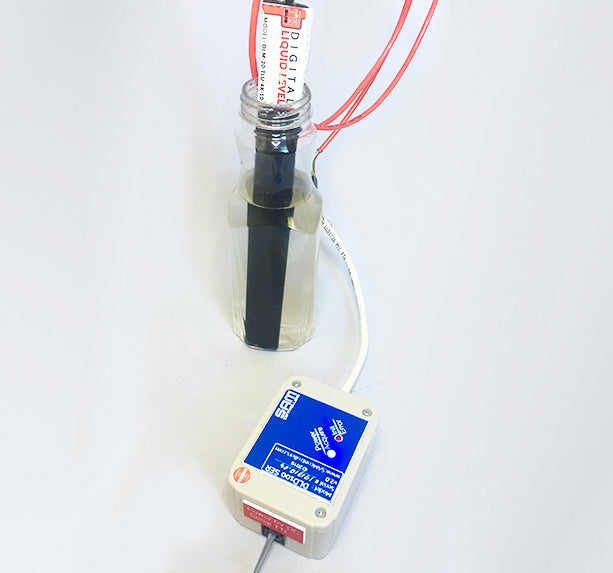

Development kit for the SAM solid-state digital liquid level sensor (DL series). The sensor has no moving parts and no open ports. It does not clog, jam, or fail the way float sensors do. Rated life exceeds 10 years. Each unit combines level detection at 1.68" (42.7 mm) resolution with dual integrated temperature sensors. It reports over an I²C digital interface.

Chemically-inert construction suits water tanks through chemical storage. Four standard lengths run from 19.25" to 69.5", with custom lengths available for production orders. The kit includes a Digital Level Development (DLD) interface unit, C libraries, and sample code. Integration typically takes hours, not weeks.

Applies to replacing float systems or upgrading analog sensors where accuracy, lifespan, and zero maintenance matter.

Development Kit Includes

• Solid-state digital level sensor (DL series)
• Digital Level Development (DLD) interface unit
• Complete C libraries and sample code
• I²C communication protocol documentation
• Integration guide and technical specifications
• Mounting hardware kit

Key Development Features

• I²C digital interface (100–400 kHz)
• 4KB NVRAM with user-accessible storage
• Integrated dual temperature sensors
• Factory calibration data included
• Real-time operational feedback
• Programmable status indicators

Technical Specifications

• Resolution: 1.68" (42.7 mm) steps
• Power: 5 V DC, <15 mA active
• Communication: I²C with active feedback
• Operating temp: −25 °C to +120 °C
• Accuracy: ±0.1% measurement depth
• Life expectancy: 10+ years

Available Models

• Model20: 19.25" (16.75" measurement)
• Model40: 36" (33.5" measurement)
• Model60: 52.75" (50.25" measurement)
• Model80: 69.5" (67" measurement)

Typical development targets:

• Industrial automation systems
• Tank monitoring
• Process control
• Environmental monitoring
• Custom liquid level instrumentation

Custom lengths and configurations available for production orders.
