Air Compressor Unloader Valve: Types, Symptoms, Replacement, and Adjustment
An air compressor unloader valve releases the air trapped between the pump head and the tank check valve. It does this each time the motor stops. That release lets the motor restart against no pressure. Without a working unloader valve the motor starts under load. It draws heavy current. It often trips the breaker or stalls.
This guide covers what the valve does and the three types. It shows where the valve sits, how to spot a failed one, and how to replace or adjust it. It also explains how a digital controller drives the valve.
What an unloader valve is
A reciprocating compressor pumps air through a discharge line into the tank. A check valve at the tank holds that air in. When the motor stops, the line between the pump and the check valve stays full of compressed air.
An electric motor produces the least torque at the instant it starts. If the pump still holds pressure, the motor has to push against it from a standstill. The result is a long, hot start, high inrush current, and a breaker that trips on a warm day.
The unloader valve solves that. It opens a small vent path when the compressor shuts off. The trapped air escapes with the short hiss you hear after the motor stops. The next start happens against an empty line.

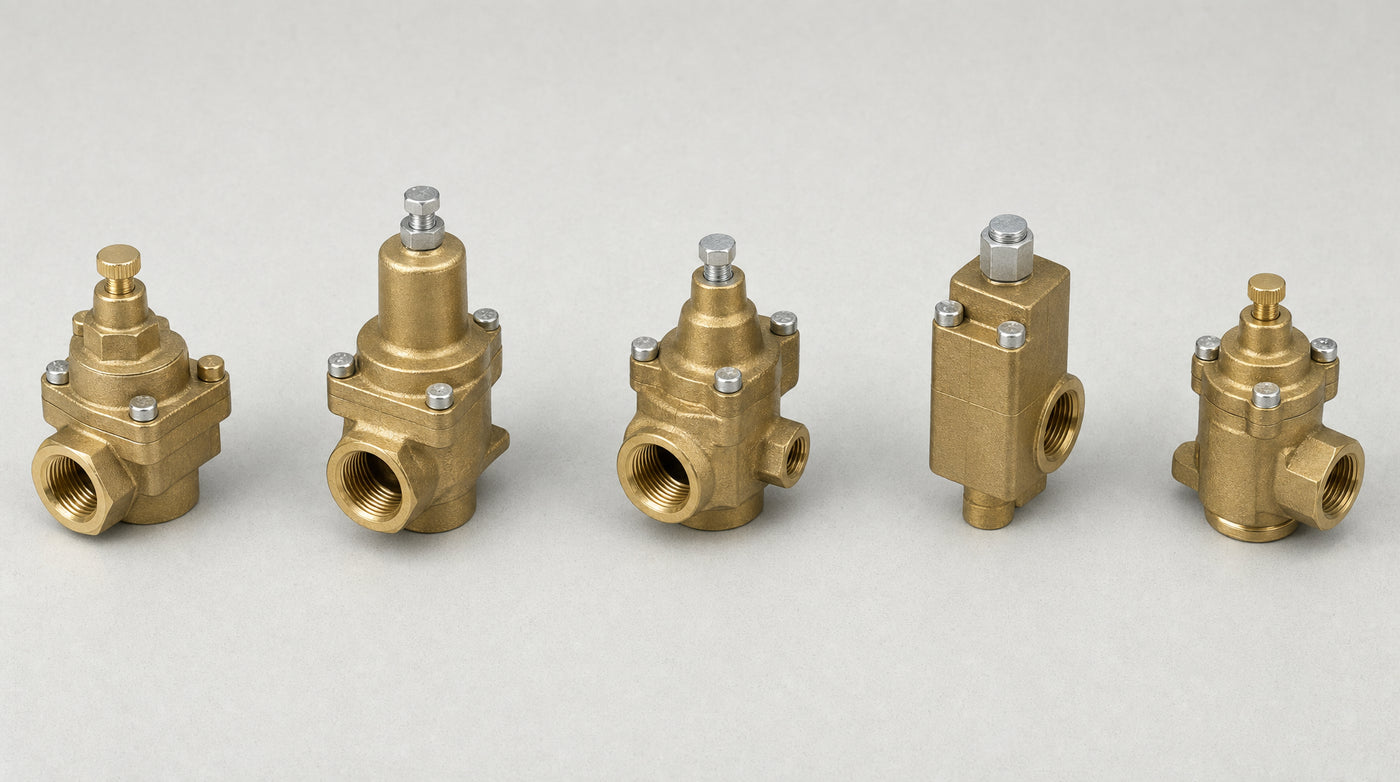

The three types of unloader valve
| Type | How it works | Typical use |
|---|---|---|
| Pressure-switch unloader | Built into or mounted on the pressure switch. The switch opens the vent as it cuts power to the motor. | Small shop and home compressors |
| Pilot-operated unloader | A small pilot valve senses pressure and drives a larger main unloader valve. It gives finer control. | Larger and higher-capacity units |
| Solenoid unloader | An electrically operated valve. A controller energizes it directly, so timing is programmable. | Modern and digitally controlled systems |
All three do the same job. They differ in what commands them and how precisely the timing can be set.
Where the unloader valve sits on the compressor
Location depends on the size and design of the unit. Follow the discharge line from the pump head toward the tank. Look for a small vent fitting or a tee.
- Small units. Look on or inside the pressure switch. A short tube usually runs from the switch to the pump head.
- Larger units. The main unloader valve sits near the pump. A pilot valve sits near the pressure switch.
- Some designs. The valve is built into the compressor head or into the discharge line itself.
Symptoms of a failed unloader valve
A failed unloader valve produces a small set of recognizable symptoms. Check these before you replace a motor or a pressure switch.
- The motor struggles or hums at startup. The motor tries to start against trapped pressure.
- The breaker trips when the compressor restarts. Starting under load raises inrush current.
- Air hisses continuously while the compressor runs. The valve is stuck open and vents while pumping.
- You hear no hiss at all after shutdown. The valve has stuck closed. It never releases the line.
- The compressor restarts, stops, and restarts. A leaking valve bleeds tank pressure down.
A stuck-open valve wastes air on every cycle. A stuck-closed valve puts the load on the motor. Both shorten equipment life, so treat either as urgent.
Replacing an unloader valve
Replacement is a straightforward job on most compressors. Work slowly and depressurize first.
- Cut power at the disconnect. Do not rely on the pressure switch to isolate the unit.
- Drain the tank completely. Open the drain and confirm the gauge reads zero.
- Trace and photograph the tubing. Record which port each line lands on before you remove anything.
- Remove the old valve. Hold the fitting with a second wrench. That stops you twisting the discharge line.
- Fit the new valve. Use thread sealant rated for compressed air. Do not overtighten brass.
- Restore power and test. Run one full cycle. Listen for the hiss at shutdown and confirm it stops.
Our unloader valve installation guide gives a full walkthrough with a worked example.
Adjusting an unloader valve
Pressure-switch unloaders are usually not adjustable. Pilot-operated unloaders often are. The pilot carries a spring and an adjustment screw that sets the pressure at which it acts.
Adjust only against the figures in your compressor manual. The correct setting depends on your pump, your tank, and your cut-out point. No single value fits every machine. Contact the manufacturer before you turn the screw if you have no manual.
Suppose the valve vents at the wrong moment and the adjustment does not correct it. Suspect a worn seat or a tired spring. Replace the valve rather than chase the adjustment.
How a digital controller drives the unloader
A digital compressor controller does not replace the unloader valve. It commands it, and it decides the moment more precisely than a mechanical pressure switch can.
- It installs inline. The existing valve stays in place. The controller takes over the command signal.
- It sets timing. The controller chooses when to unload and for how long. A mechanical switch vents on a fixed trip instead.
- It reads the system. Pressure and other inputs shape the unload decision across different duty cycles.
- It works with the common valve types. Solenoid valves suit it best. They take a direct electrical command.
The SAM Compressor Controller Model R drives an unloader valve this way. That page also lists kit options that bundle the valve and the wiring. For maintenance context, see our reciprocating compressor maintenance guide.
Frequently asked questions
What does an unloader valve do on an air compressor?
It releases the compressed air trapped between the pump head and the tank check valve when the motor stops. That lets the motor restart against no pressure.
What happens if the unloader valve fails?
The motor starts against trapped pressure. It draws heavy current, struggles or hums, and often trips the breaker. A valve stuck open instead vents air continuously while the compressor runs.
Where is the unloader valve located?
On small compressors it sits on or inside the pressure switch. On larger units the main valve sits near the pump with a pilot valve near the switch. Some designs build it into the head or the discharge line.
Can I replace an unloader valve myself?
Yes, on most compressors. Cut power at the disconnect. Drain the tank to zero. Photograph the tubing. Swap the valve and test one full cycle.
Why does my compressor hiss after it shuts off?
That hiss is the unloader valve at work. It releases the trapped discharge line. A brief hiss is correct. Continuous hissing while the compressor runs is not.
