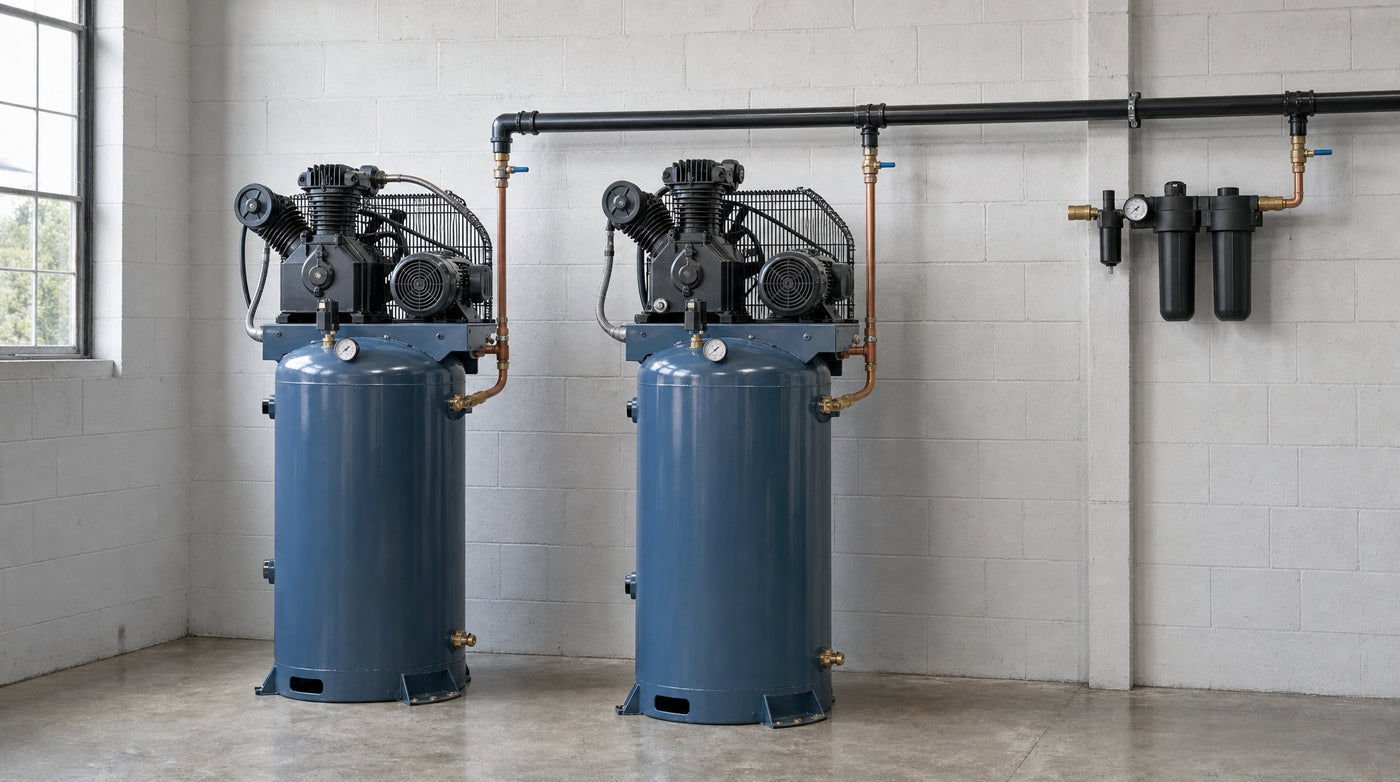

Lead-Lag Control for Shops Running Two Compressors

Shops that outgrow one compressor rarely buy one bigger machine. They add a second one. That is cheaper, it gives you redundancy, and it lets you match output to demand instead of running a large pump at part load all day. The moment you have two compressors on one air network, you need to decide which one starts first. That decision is lead-lag control.

What Lead-Lag Control Does

In a lead-lag setup, one compressor is the lead. It responds first to a pressure drop and handles normal demand on its own. The second is the lag. It starts only when the lead cannot keep up, which usually means pressure has continued to fall past a second, lower setpoint.

The important part is not the split. It is the alternation. If the same machine is always the lead, it accumulates all the runtime, all the thermal cycles, and all the wear, while the lag unit sits mostly idle. You do not own two compressors with half the wear each. You own one worn-out compressor and one that has been sitting long enough to develop its own problems.

Why Mechanical Setups Drift Out of Alternation

The traditional approach is two mechanical pressure switches set a few PSI apart. It works on the day it is commissioned.

It does not stay working. Mechanical pressure switches drift up to 20% per year as springs wear and temperatures swing. Both of your switches drift, they drift by different amounts, and they drift in different directions. The 5 PSI you carefully set between lead and lag becomes 12 PSI, or it becomes zero and both machines start together on every demand.

Nothing announces this. There is no alarm. The symptom is a compressor that has quietly logged three times the hours of its partner, discovered during a teardown you did not plan.

How Two Controllers Share the Job

A digital controller removes the drift from the equation. The Compressor Controller Model R reads tank pressure to within 0.5 PSI and holds pressure to 1%, so the gap you set between lead and lag stays the gap you set.

Alternation is handled over the CompressorCity link, a single-wire bus that lets multiple controllers share runtime, balance pump wear, and stand in for each other on failure. The controllers agree on which machine leads based on accumulated hours rather than on which switch happens to trip first. When one unit is down for service, the other covers the network instead of leaving the shop without air.

Each controller logs running hours, cycle counts, temperatures, and maintenance timers to onboard EEPROM, readable on the 20x4 LCD. That turns wear balance from an assumption into a number you can check.

What to Confirm Before You Wire It

1. Both machines are reciprocating piston compressors over 2 HP. Single or multi-stage is fine, and brand and age do not matter.
2. Supply is single phase 120/240 VAC or three phase 208/480 VAC.
3. Each pump has its own unloader valve. A duplex system needs an electric unloader valve per pump, not one shared between them.
4. The two machines feed a common receiver. Lead-lag across separate, unconnected air networks is not lead-lag. It is two independent compressors.

On unloader valve selection and installation, see Compressor Controller and Installing Unloader Valves and the Unloader Valve Guide.

What It Is Worth

Digital control cuts annual compressor energy cost by up to 40%, and typically pays for itself in under a year. On a per-machine basis that is $709 per year at 5 HP, $1,063 at 7.5 HP, $1,417 at 10 HP, and $2,834 at 20 HP.

Those figures assume 8 hours per day of operation at $0.1668 per kWh, calculated with standard CAGI and U.S. Department of Energy methodology over a 10-year life. Check them against your own electricity rate and run hours before you budget from them. In a two-compressor shop the number applies twice, and the wear balancing is the part that does not show up on the power bill at all.

Starting the pump unloaded cuts peak power draw on spin-up and keeps oil and water out of the pump. In a duplex system that matters more than in a simplex one, because you are paying that inrush cost on two machines instead of one.

Where to Start

If you are running two compressors on mechanical switches today, the first thing worth doing is not a purchase. It is a measurement. Read the hour meters on both machines. If they are within 10% of each other, your alternation is working. If one has run substantially longer, your lead-lag has already drifted and the wear is landing on one machine.

See the Compressor Controller Model R for the controller itself, or contact us with your compressor sizes and hour readings.
