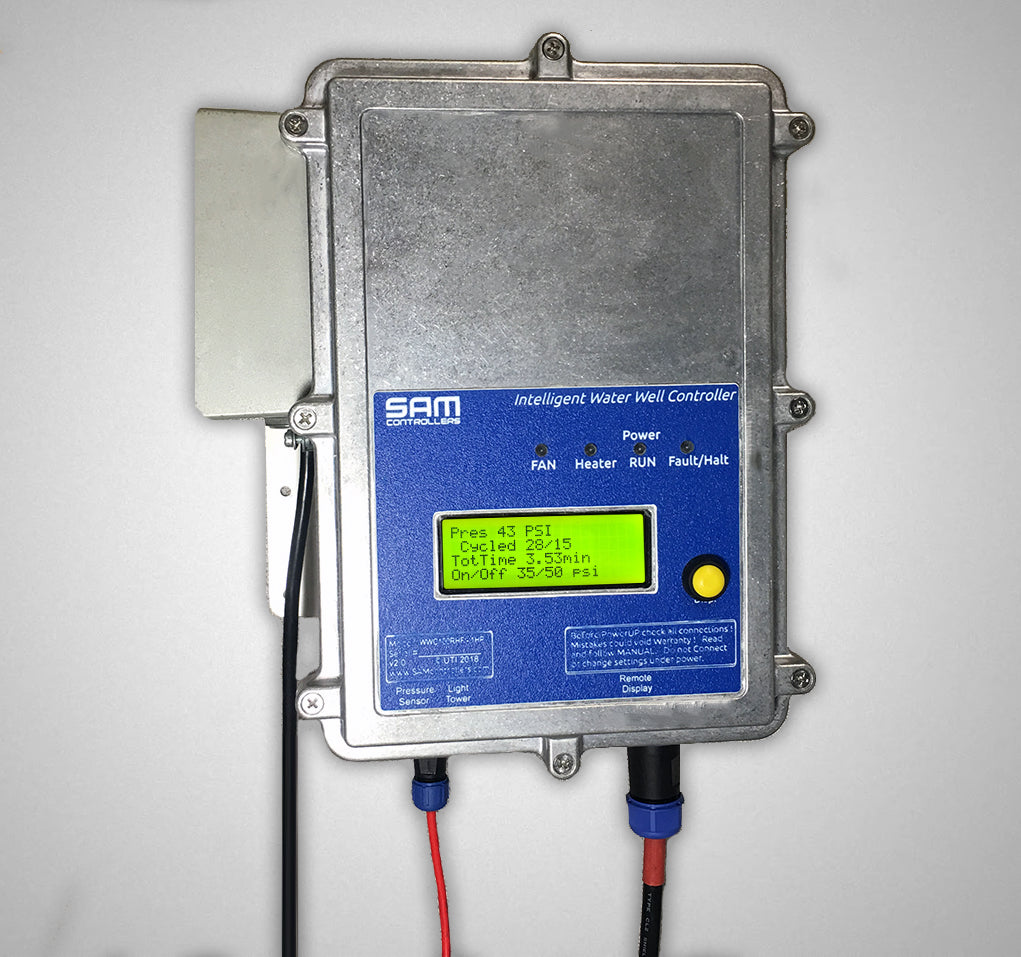

Digital water pump controller for well, irrigation, and light-sewage installations
Pre-wired IP67 controller that drops into an existing pressure-switch + dry-run-protection setup — or designed in by an OEM building their own pump product. Adds active fault detection, freeze protection, operating-hour tracking, and digital monitoring on top of the basic start/stop logic.
Why this controller vs. the conventional setup
- IP67 enclosure — rated for outdoor and wet-environment installation without secondary housing.
- Pre-wired harness — reduces field install time vs. building up a controller from discrete components.
- Active fault detection — flags dry-run, freeze, and other off-nominal pump conditions instead of cycling silently into damage.
- Freeze protection — explicit cold-weather control logic for outdoor wellheads and exposed irrigation manifolds.
- Operating-hour and cycle tracking — for maintenance planning and warranty claims.
- Monitoring and reporting — live-status indicators on the controller; remote-monitoring options available on request.
Specifications
- Form factor: pre-wired IP67 controller
- Enclosure rating: IP67
- Application range: water-well pumps (submersible / above-ground), irrigation systems, light-sewage installs
- Fault detection: dry-run, freeze, additional off-nominal conditions
- Tracking: operating hours and cycle count
- Origin: Designed and assembled in Pittsboro, NC
- Datasheet: full specifications (input voltage, pump compatibility, sensor inputs, control outputs, dimensions) available on request — contact us.
FAQ
How is this different from the dedicated Sewage Pump Controller?
This SKU is the general-purpose water/irrigation/light-sewage controller. For dedicated sewage installs (lift stations, septic systems, heavy-duty wastewater), the SAM Sewage Pump Controller adds float-switch fault awareness and sewage-tuned reliability features.
Will this work with my existing pump?
It's designed to drop into an existing pressure-switch + dry-run-protection setup. Confirm input voltage, pump HP, and connector format with us before ordering — we'll match the harness.
Is remote monitoring included?
Live-status indicators are on the controller itself. Remote / connected monitoring is available as an add-on — contact us for the current options.
Is the price the same for OEM volume?
$1,485 is the published single-unit price. Volume / OEM pricing is available on PO — reach out with quantity and target install date.
Compliance & origin
- Origin: Assembled in Pittsboro, North Carolina, USA. Components are sourced from global suppliers; final assembly, firmware, and QC happen in the NC workshop.
- Enclosure: IP67 rated for wet-environment outdoor installation.
- Support: ticket-based support direct from the people who built the hardware — open a ticket.
- Warranty & certifications: available on request — open a ticket for the current scope.
Documentation & warranty
Full technical datasheet, installation guide, and warranty terms are available on request. Ticket-based support direct from the manufacturer in NC.
