Independent DOE-funded testing: 23% power reduction on a reciprocating compressor
Reciprocating air compressors are controlled the same way they were fifty years ago: a mechanical pressure switch and a timer. The switch drifts as it ages, the timer runs on a fixed schedule regardless of demand, and neither one adapts to what the compressed air system is actually doing. The Compressor Controller replaces that control layer with sensor-driven logic — and the result was independently measured, not self-reported.
Who ran the test, and who funded it

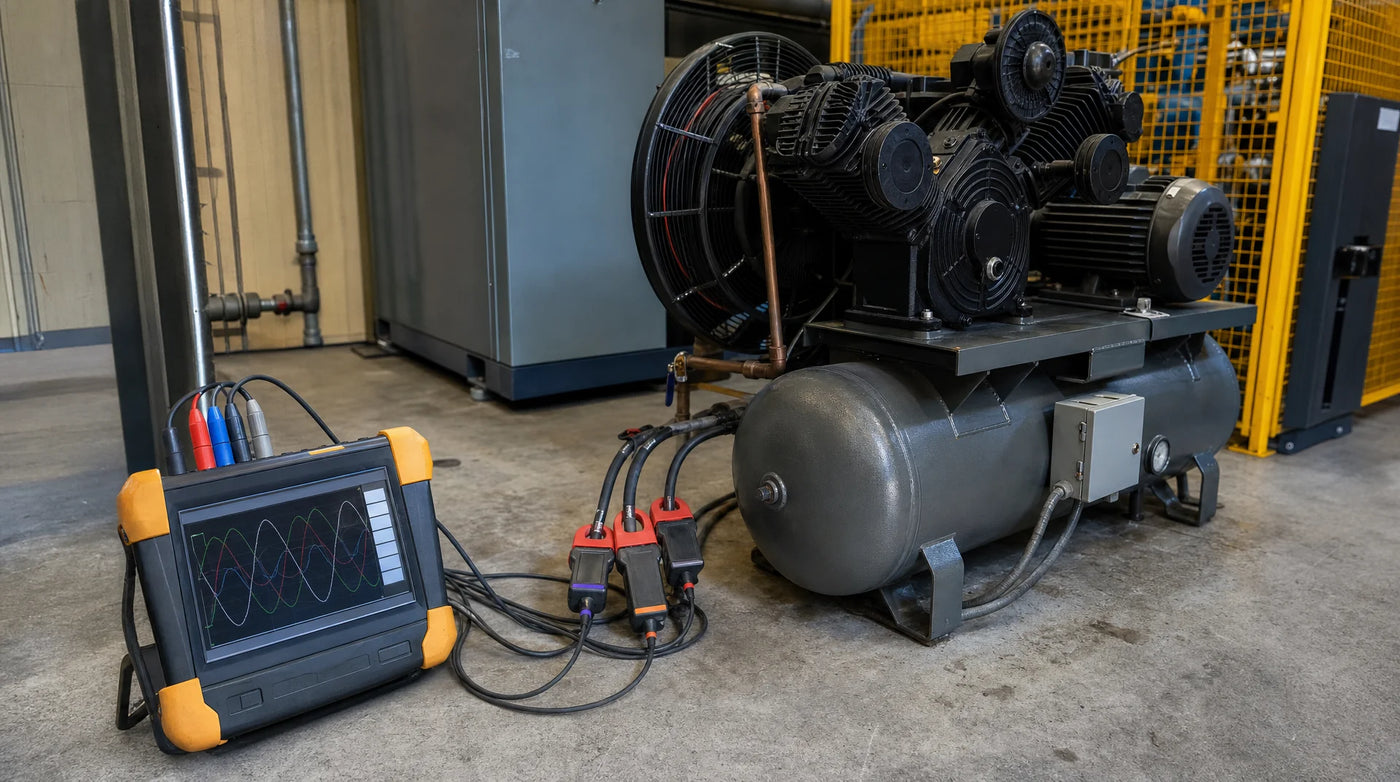

The evaluation was conducted by Pecan Street Inc., an independent research organization, under funding from the U.S. Department of Energy. Pecan Street tested a SAM Controllers Compressor Controller installed on a single-pump reciprocating air compressor. This is a third-party test, not an internal benchmark: the DOE funding and the independent test house are what make the numbers below citable rather than promotional.
The headline result: 23% power reduction
The test measured a 23% reduction in power usage on the single-pump reciprocating compressor with the Compressor Controller installed, compared to the stock pressure-switch-and-timer control it replaced.
For context on why this number matters at scale: the Lawrence Berkeley National Laboratory estimates that compressed air systems account for approximately 8% of total electrical usage across the manufacturing industry. Most of that load is spent on air that never reaches productive use in the process it supports. A controller that recovers even a fraction of that waste, verified independently, is a different claim than an unverified efficiency estimate from a vendor data sheet.
What else the test measured
Power reduction was the headline metric, but the same test run surfaced four additional, verified effects of switching from mechanical control to sensor-driven control:
- Condensate/moisture reduction, approximately 100%. The stock control cycle allowed measurable condensate accumulation in the tank per cycle. Under Compressor Controller logic, condensate accumulation dropped to near zero — effectively eliminating the moisture load that a separate air dryer would otherwise need to remove.
- Startup current reduction, 20%. The controller manages the pump's unloader valve with real-time feedback so the motor loads on a controlled schedule rather than slamming into full load at start. That drops the in-rush current spike by roughly a fifth.
- Elimination of pressure-band drift. A mechanical pressure switch drifts as its diaphragm ages, widening the band between cut-in and cut-out pressure over time and wasting cycles. Digital pressure measurement holds the band fixed, removing that drift entirely.
- Thermal overload protection. The controller monitors pump temperature and intervenes before a thermal fault becomes a failure, rather than relying on the pump's own thermal cutout as the only line of defense.
Why these effects are related, not independent
These aren't five unconnected line items — they are downstream of the same change. A mechanical pressure switch does one thing: open or close a contact at a fixed set point, with no visibility into pump temperature, cycle history, or condensate state. Replacing that switch with a digital pressure sensor plus a control loop is what makes the other four effects possible in the same install:
| Verified result | Mechanism |
|---|---|
| 23% power reduction | Sensor-driven duty cycle replaces a fixed-band mechanical switch |
| ~100% condensate/moisture reduction | Cycle timing tuned to avoid the wet part of the compression cycle instead of running on a blind timer |
| 20% startup current reduction | Unloader valve timing controlled with real-time feedback instead of an uncontrolled cold start |
| Drift elimination | Digital pressure measurement instead of a mechanical diaphragm that changes calibration with age |
| Thermal overload protection | Continuous pump temperature monitoring instead of relying solely on the pump's built-in thermal cutout |
What this does and doesn't claim
This is a single independent test, on a single-pump reciprocating compressor, funded by the DOE and executed by Pecan Street Inc. It is not a claim that every installation will see identical numbers — a compressor's duty cycle, ambient conditions, and existing control state all affect the delta between mechanical and sensor-driven control. What the test does establish, with a named independent test house and a named funding source, is that the underlying mechanism (sensor-driven duty cycling instead of a fixed mechanical switch) produced a measured 23% reduction in power draw, a near-elimination of condensate, a 20% cut in startup current, elimination of pressure-band drift, and functioning thermal protection — on the hardware actually tested.
Where this fits for a retrofit
The Compressor Controller is designed as a drop-in replacement for the pressure-switch-and-timer control most reciprocating compressors already ship with — same enclosure, same wiring path, no changes to the pump itself. For a facility running a single-pump reciprocating compressor on a worn or drifting pressure switch, the DOE-funded test above is the independent baseline for what sensor-driven control changes, measured on the same class of hardware rather than projected from a data sheet.
